The CAGED System Demystified

What Is the CAGED System?

CAGED stands for the five open chord shapes every guitarist learns early on: C major, A major, G major, E major, and D major. The CAGED system is the realization that these five shapes are not just open chords - they are templates that repeat up and down the entire neck.

Here's the key insight: the guitar fretboard is organized in a repeating pattern. After the open position, the exact same five shapes appear again, shifted up the neck. The sequence is always C → A → G → E → D, and then it cycles back to C. This predictable pattern is why the system works - and why it's so practical.

Barre Chords and the CAGED System: How Movable Chord Shapes Work

Think about an open A major chord. Your fingers form a specific shape, and the open strings ring from the nut at the top of the neck. Now imagine sliding that entire shape up two frets - you'd need something to press down all the strings at the new position. That "something" is your index finger, laid flat across all the strings like a movable capo. This is a barre chord.

A barre chord is simply an open chord shape moved up the neck, with your index finger acting as a capo at a new fret. Slide the A shape to fret 2 and you get B major. Slide it to fret 3 and you get C major. The shape never changes - only the starting fret determines which chord you're playing.

Seeing All 5 Shapes at Once

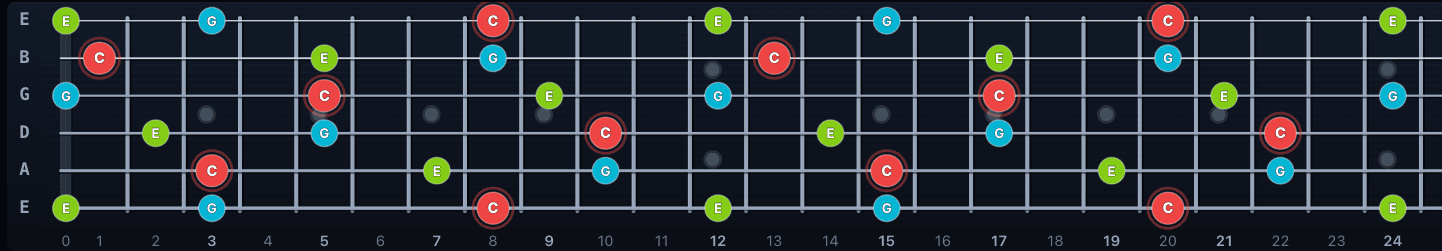

Below is a screenshot from fr3t.app showing the C Major chord across the entire fretboard with all five CAGED shapes visible simultaneously. Notice how the shapes tile together with no gaps - the entire neck is covered:

Each dot represents a chord tone. The colors indicate the interval - red dots are roots (the note the chord is named after), green dots are major 3rds, and cyan dots are perfect 5ths. This color system helps you instantly identify which notes are most important when improvising or choosing voicings.

The 5 CAGED Shapes, Explained

Let's walk through each shape individually. For each one, we show where the root note lives, what makes the shape unique, and a live screenshot from fr3t.app so you can see exactly what it looks like on the fretboard.

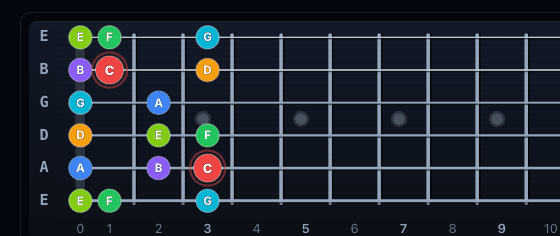

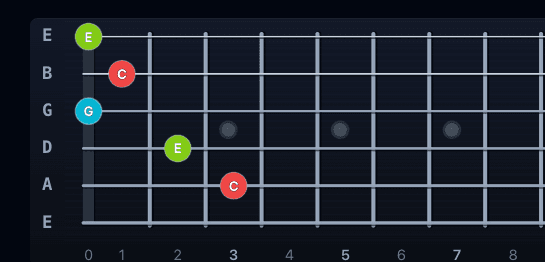

CThe C Shape

Root on the A string (5th string)

The C shape places its root on the A string. In the open position, this is the classic open C major chord. When barred and moved up the neck, it creates rich mid-register voicings.

🎵 Chord Position

🎸 Scale Position

Notice how the scale pattern (right) wraps perfectly around the chord voicing (left). The chord tones - highlighted in the same interval colors - are the strongest landing notes when soloing in this position.

💡 Tip: Focus on the root note location on the A string - this is how you'll name the chord when you move the shape.

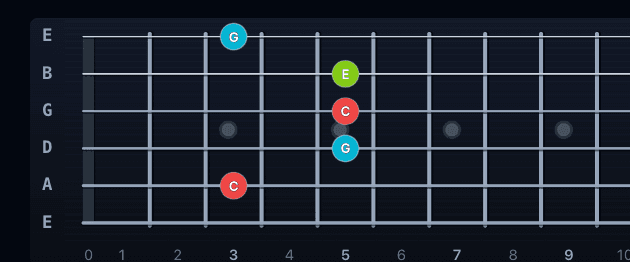

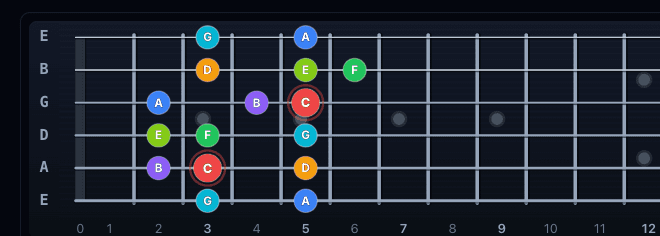

AThe A Shape

Root on the A string (5th string)

The A shape is one of the most practical barre chord forms. Its root also sits on the A string, and it's the foundation for countless rock, pop, and blues songs. Many guitarists learn this shape as their first barre chord.

🎵 Chord Position

🎸 Scale Position

Notice how the scale pattern (right) wraps perfectly around the chord voicing (left). The chord tones - highlighted in the same interval colors - are the strongest landing notes when soloing in this position.

💡 Tip: The A-shape barre chord is one of the two most important shapes to master. Combined with the E shape, it covers most of the fretboard.

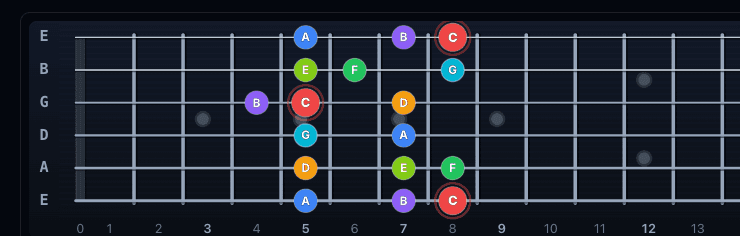

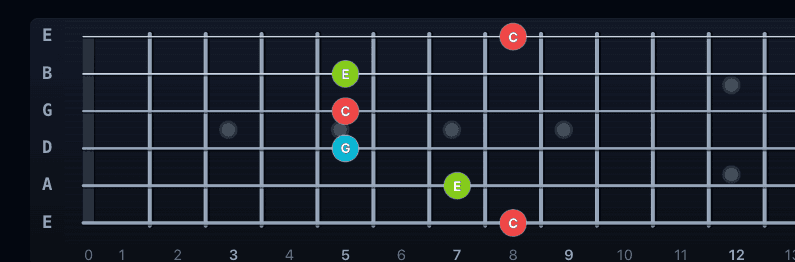

GThe G Shape

Root on the E string (6th string)

The G shape spans a wide stretch with its root on the low E string. The full barre form is physically demanding, but partial voicings from this shape are used frequently - especially the treble strings (1st through 4th).

🎵 Chord Position

🎸 Scale Position

Notice how the scale pattern (right) wraps perfectly around the chord voicing (left). The chord tones - highlighted in the same interval colors - are the strongest landing notes when soloing in this position.

💡 Tip: Don't try to barre the full G shape at first. Use partial voicings on the treble strings - they sound great and are much easier to play.

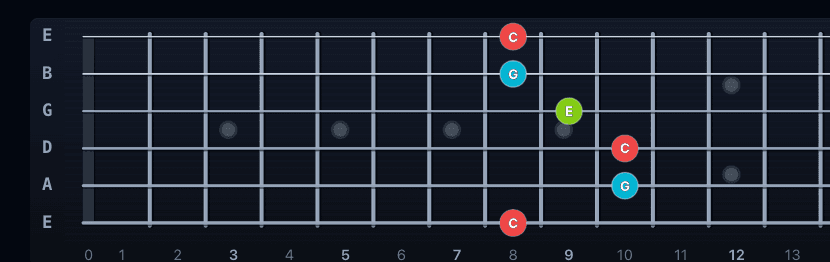

EThe E Shape

Root on the E string (6th string)

The E shape is the most recognizable barre chord form in guitar. With its root on the low E string, it produces full, powerful chords that are the backbone of rock, pop, and blues. This is often the very first shape guitarists learn to move.

🎵 Chord Position

🎸 Scale Position

Notice how the scale pattern (right) wraps perfectly around the chord voicing (left). The chord tones - highlighted in the same interval colors - are the strongest landing notes when soloing in this position.

💡 Tip: The E-shape barre chord is the other critical shape. If you know E and A shapes, you can play any major or minor chord.

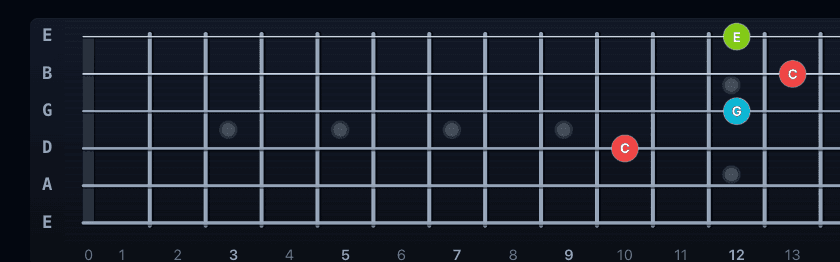

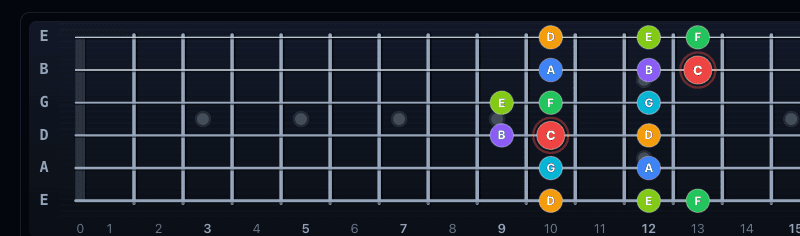

DThe D Shape

Root on the D string (4th string)

The D shape places its root on the D string, producing bright, treble-focused voicings on the upper strings. When moved up the neck, it creates compact chord shapes perfect for funk, R&B, and jazz comping.

🎵 Chord Position

🎸 Scale Position

Notice how the scale pattern (right) wraps perfectly around the chord voicing (left). The chord tones - highlighted in the same interval colors - are the strongest landing notes when soloing in this position.

💡 Tip: D-shape voicings are fantastic for adding variety to your rhythm playing - especially on the higher frets where they ring out clearly.

How the Shapes Connect

The CAGED shapes don't sit in isolation - they overlap. The end of one shape shares frets with the beginning of the next. This overlapping is the "glue" that connects the fretboard into one continuous map.

The order is always the same: C → A → G → E → D, then back to C. This cycle repeats infinitely in both directions. Because the guitar only has so many frets, you'll typically see 2-3 complete cycles across a 24-fret neck.

This means that once you memorize where the shapes overlap, you can smoothly navigate from one end of the fretboard to the other. No more "dead zones" - every fret is covered.

Beyond Chords: The Pentatonic Connection

Here's where the CAGED system transforms from "chord theory" into lead playing freedom. Each of the 5 CAGED chord shapes has a corresponding pentatonic scale pattern that wraps perfectly around it.

You've probably heard of "Box 1" pentatonic - that's the scale pattern that surrounds the E shape. "Box 2" wraps around the D shape. And so on. The 5 pentatonic "boxes" are literally built on top of the 5 CAGED chord shapes.

Try it yourself: open A Minor Pentatonic in fr3t.app, enable the CAGED overlay, and notice how each pentatonic box wraps perfectly around its parent chord shape. The fretboard suddenly makes sense.
